Double Drum Roller

ADVANTAGES:
Equipped with Brand-name Power, Superior Performance, Easy to Start.
Operating radius is small, In an extremely Narrow area operations.
Use of domestic Brand name hydraulic pumps, motors, before and after the road, easy to Operate.
Lengthened armrest, Steering Convenience, Can adapt to different height of the operation.
Surface spray, Beautiful and beautiful, Rust & corrosion.
Infinitely variable Speed Control.
Hydraulic Vibration Drive.
Water Sprinkler System Drum Scrappers.
Hydraulic Vibration Control.
High Gradient Capacity.

Optional Features:
Electrically operated
Self-Starting arrangements

Application Areas:
Municipal
Highway Pavement maintenance operations
Culverts, Trench Base & Backfill
Construction and plaza construction in the compaction
Edges of highway, Construction & repairing of roads
Embankments & Compaction canals
Private Roads & Hilly terrains with sharp Bends
Rolling Lawns, Playground & Parking lots etc.
Get A Quote
Description

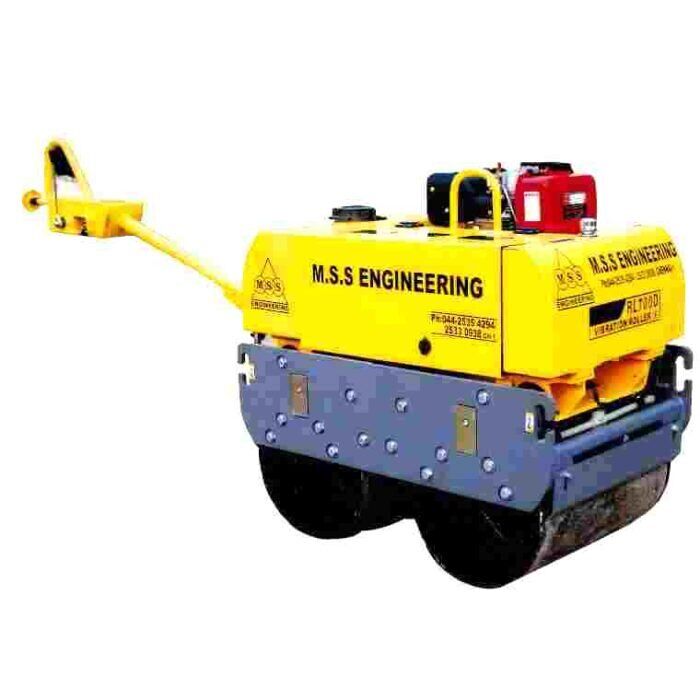

MSS is a unique brand, which is engaged in Presenting a Walk Behind Double Drum Vibratory Roller or a baby roller is a modern compact design for use in a wide range Of compaction application. Hydraulic with integrated travel control eases the operating effort required for Movement.
The famous Walk behind Double Drum Vibratory Roller has the vibratory source located in the Drum which provides maximum compaction and traction performance. The MSS Roller is suitable for operation on various types of soils in tropical conditions.
Product Feature
Model
Engine
Greaves Diesel Engine
Engine Model
1510 Electric Start
Engine Type
Air Cooled Diesel Engine
Power
10 HP
Drive Model
Mechanical Drive
Walking Model
Front & Back
Dimension
1300 x 450 x 680 mm
Vibratory Clutch Method
Automatic.
Centrifugal Force / Exciting Force
25 Kn
Fuel Capacity
6 to 8 Ltrs.
Area of Compaction
25000 sq.ft. / hour
Theoretical Climbing Ability
30%
Hydraulic Oil tank Capacity
18 Ltrs.
Water Tank Capacity
35 Ltrs.
Watering System
Gravity Sprinkle System
Wheel Size
600mm x 420mm x 2
Package Size
1350 x 750 x 1150 mm
Weight
650 Kgs.
