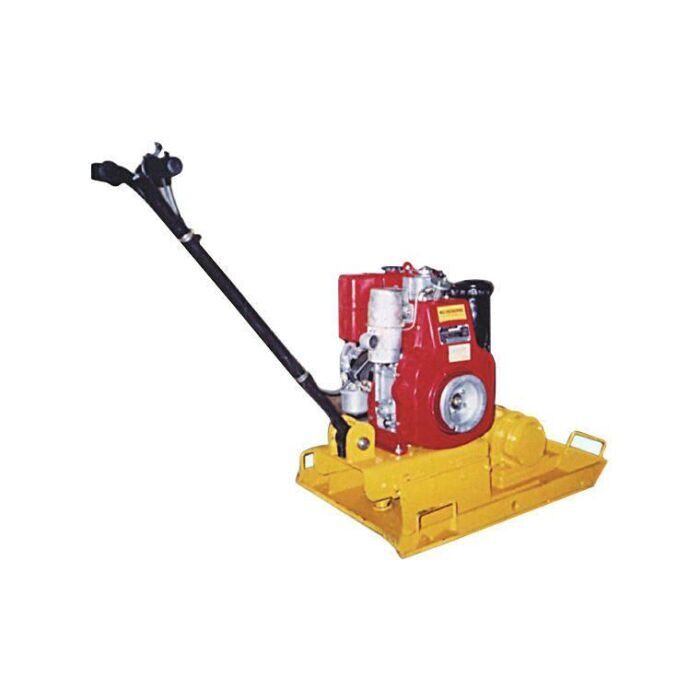

MSS Earth Rammer | Plate Compactor | Heavy Duty

ADVANTAGES:
Earth Rammer or Plate Compactor for Soil Compaction is a useful equipment to compress and make the soil compact and it is widely used in the field of Construction Industry. MSS Earth Rammers are Heavy Duty and backed by our reliable service team. Usually comes in a variant with 6 to 8 tons with Automatic Forward Movement.

Get A Quote

Product Feature

Model

Capacity

6 to 8 tons

Impact Force

3500 Kgs.

Vibration Frequency

50 Hz

Depth Effect

16″

Travel Speed

upto 20 M per min

Gradient Capacity

upto 20%

Compaction Plate Size

780mm x 620mm x 490mm

Working Area

5500 sq.ft.per hour.

Power

5 HP, 3600 RPM Greaves 5520 Model Diesel Lombardini Engine with throttle Control and speed arrangement and Vibration proof Steering Handle

Application

To Compact Loose soil and Similar Application

Speciality

The Rammer is based on the principle of reciprocal Pressure generation having two pairs of eccentrics moving opposite to each other and mounted on an inclined steel stand fixed to the center of ramming plate in order to obtain lower centre of gravity and uniform compaction of the ramming plate over its full length. The Compaction plate is steel fabricated and vertically directed impulse in order to achieve quick compaction and high depth action.
