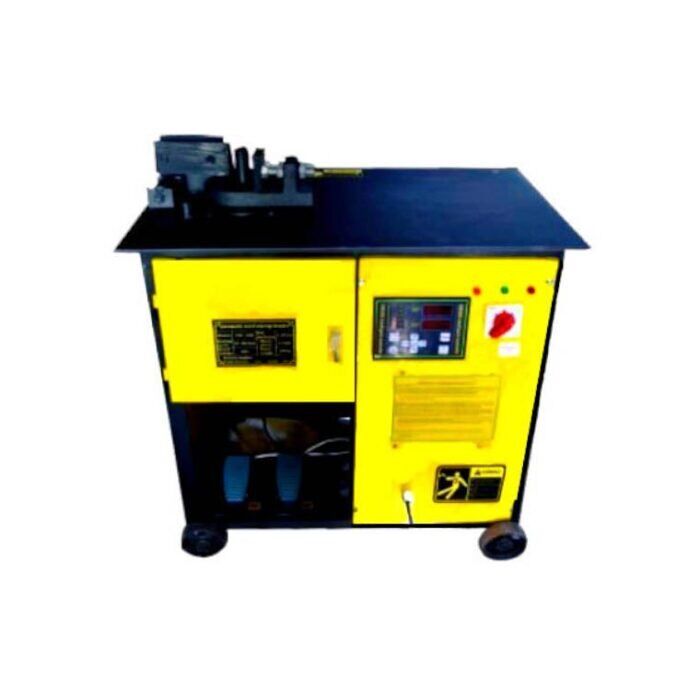

Stirrup Bending Machine

ADVANTAGES:
Compact Structure
Stable Performance
Copper Motor
Flexible & easy to operate
Good Steel work disk
High Working Efficiency
Strong Durability
Adopts the 10mm thicken top plate and high rigidity disk of iron, more durable.
Equipped with International standard copper motor. Ultra high hardness accessory and adjustable fender.
Adopt 6mm thick top plate, high rigidity disk, adjustable stylobate, the bending angle of more efficient.
Equipped with international standard copper wire brake motor, narrowing inertance when the machine stops and the bending angle is more accurate.
Get A Quote
Description
Stirrup bending machine has another name called ring making machine. This machine is with a wide range of being used in building and construction industries. Stirrup making machine to some extent is one kind of bar bending machine, but it has some functions that the normal bending machine does not have. Stirrup bender can bend bar, rebar, reinforcing bar and steel within 180° into different forms according to different settings, for example, triangle, quadrangle, pentagram, polygon and ring. Besides, this machine can also bend metals into “U” shape. That’s why stirrup bending machines are also called U-bending tools. Anchor automatic Stirrup Bending Machine is Most Durable, Rugged, Stable Bending Machine to bend dia. from 4mm to 20mm. Bar Bending machine (MSSF-20) is specially designed for heavy Duty rebar and high on demand for construction job site application. Such as simple bending process, high work efficiency, convenient angle for adjustment and neat bending results. The function of stirrup bending machine is to bend bars into varieties of shapes according to different requirements, such as rectangle, square and other simple shapes. Anchor automatic stirrup bending machine can bend round steel bar with diameters from 4mm to 20mm. Both the processing scope and the external adjuster are optional, so this type of machine is quite convenient to use.
MSSW20 & MSSF20 are similar to each other. Their structure is relatively simple and their work capacity is relatively lower compared with the other two sizes of stirrup machines. But they are very flexible to operate. These bar machines have a button that can switch bending angles from 90° to 135° directly, because these two arcs are more often being used. Besides, our Anchor stirrup machines are able to bend bars into any other angles with 180°. Because MSSW20 & MSSF20 are semi-automatic, they can be easily operated by hand to decide what arcs you want to make. MSSF20 is the machine with a numerical control panel from a wide range of round bar with diameters between 4mm and 20mm. You can set a certain angle within 180° on the control panel. It is easy and reliable to operate. This automatic stirrup bender can save labour and improve efficiency of processing bars.
Application : MSSW20 & MSSF20 Steel bar bending machine can be used efficiently to bend ordinary carbon steel, hot-rolled steel, screw bar, flat bar, square bar and angle steel bar which are widely used in machining and construction project.
Product Feature
Model
MBB 40
Bending Rebar Dia
≤Ø 20 mm
Plate Diameter
360mm
Motor Speed
20r/min.
Motor Power
5 HP
Voltage
415V
Motor Speed
1440 r/min.
